Drz400s vs Drz400sm – Which Is the Most Ideal Off-Road Bike

Written BySteve Riley Updated on18/01/2023

Which is your favorite? The DRZ400S or the DRZ400SM.

Suzuki Cycles - 2022 DR-Z400S

Which Is The Best Off Road Suzuki

This drz400s vs. drz400sm review will help you make the right purchasing decision regarding bikes. We will examine each bike’s key features and compare them against the other.

Table of Contents
  • Which Is The Best Off Road Suzuki
    • Drz400s vs. Drz400sm -How They Compare
  • Drz400s vs. Drz400sm – Key Differences
    • The Chassis
    • Braking
    • Drivetrain
  • DRZ400S vs. DRZ400SM – Overview
    • Drz400S – Overview
    • Drz400SM – Overview

We are all looking for some outdoor adventure, and what better way to do it than with your favorite off-road bike? Suzuki’s DRZ400 line of bikes has done remarkably well in the outdoor section. You can use the bike for cruising on road at speeds of over 100 km/h courtesy of a 398cc engine. At this speed, the bike is capable of revving to an rpm of up to 6250.

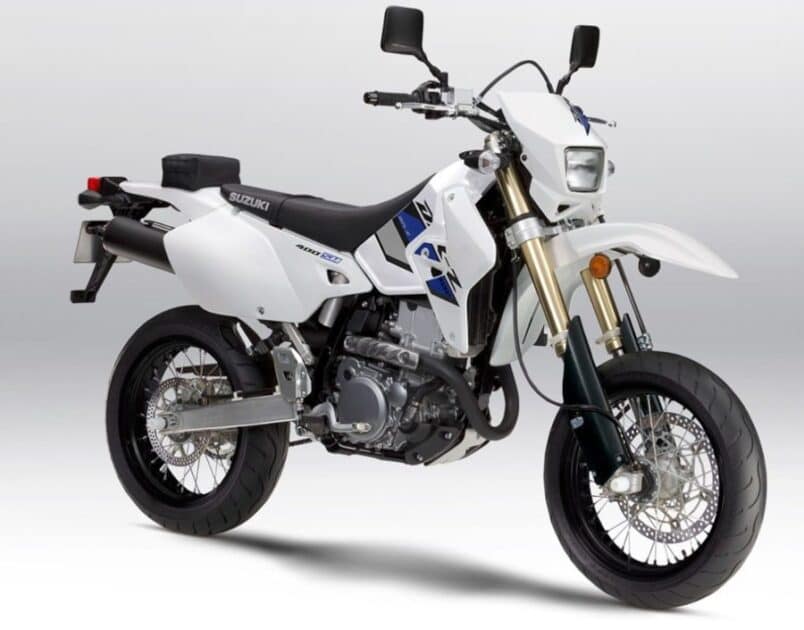

Suzuki Cycles - 2022 DR-Z400SM
Suzuki Cycles – 2022 DR-Z400SM

VS

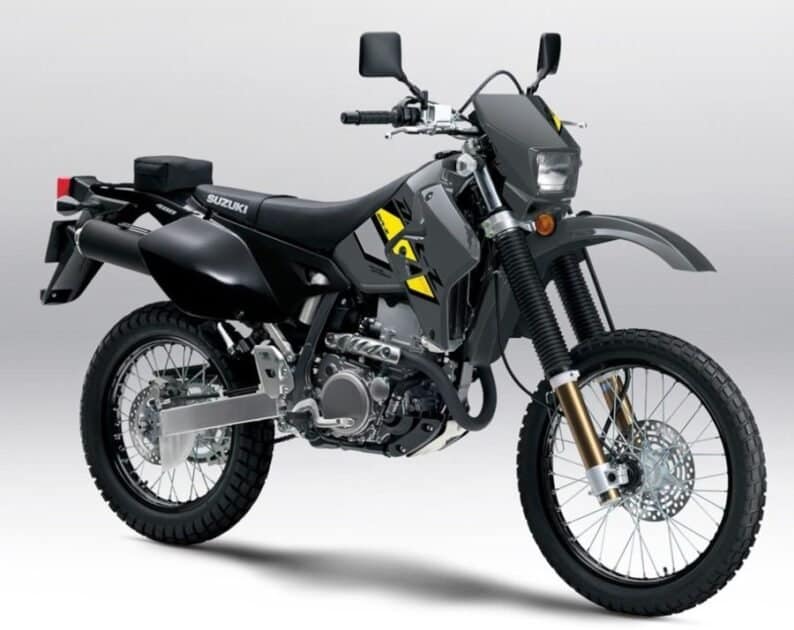

Suzuki Cycles - 2022 DR-Z400S
Suzuki Cycles – 2022 DR-Z400S

Image Rights – Suzuki Motorcycles

Both bikes are capable of on/off-road rides, but the DRZ400S has a slight advantage over the SM. For one, you get the same kind of suspension that dotted the DRZ series. This allows you to take the bike to a variety of terrain. In this review of DRZ400S vs. DRZ400SM, we compare the bike’s top features against each other and tell you which bike is better.

Related Posts

  • Are Dirt Bikes Street Legal In Florida?
  • Suzuki vs. Yamaha Who Is the Most Reliable
  • What Size Dirt Bike Should You Get for Your Height?
Suzuki DR-Z 400 Skid Plate Constructed with 3/16
Suzuki DR-Z 400 Skid Plate Constructed with 3/16
  • 1 piece skid plate will protect your ride
  • The strong and durable 3/16” 5052 H-32 Aluminum will allow...
  • Lightweight material protects your ride without affecting...
  • The included mounting hardware and instructions make it easy...
  • Designed and manufactured by Ricochet - Experienced riders...
$110.19
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

Drz400s vs. Drz400sm –How They Compare

ModelDrz400sDrz400sm
Front SuspensionTelescopic oil damped/coil spring/11.3 in (288 mm)Inverted telescopic, oil-damped, coil spring 10.2 in (260 mm)
Rear SuspensionCoil spring, link type, oil damped 11.6 in. (295 mm)Link type, oil damped, coil spring 10.9 (276 mm)
Trail4.21 in (107 mm)3.7 in (94 mm)
Caster27˚ 10’26˚ 15’
Front tiresTube type 80/100-21 M/C 51P120/70R17 M/C 58H
Rear Tires120/90-18 M/C 65P140/70R17 M/C 66H
Final DriveRK520KZ0 112 linksRK520KZO 110 links
License Plate Holder Fender Eliminator Rear Tail Tidy LED Brake...
License Plate Holder Fender Eliminator Rear Tail Tidy LED Brake...
  • Condition:100% Brand New,High quality ,Small, Compact...
  • Brake light is consists of 12 LED luminotron ( red light ) /...
  • LED Turn Signals Light:Brand New ,Super Bright,Material:...
  • Features:-It is easy to install without installition...
  • Fitment : For SUZUKI DR-Z 400S 2000-2020 / For SUZUKI DR-Z...
$29.99
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

Drz400s vs. Drz400sm – Key Differences

The Chassis

A 4-stroke 398cc liquid-cooled single engine powers both bikes. The starter is electric, but the bikes are running on a single-carburetor fuel system. Lubrication is semi-dry-sump, while the transmission for the bikes is a 5-speed constant mesh.

Sale
120pc Specbolt Suzuki DRZ DR Four Stroke Bolt Kit for Maintenance & Restoration of DRZ400
120pc Specbolt Suzuki DRZ DR Four Stroke Bolt Kit for Maintenance & Restoration of DRZ400
  • 120 pieces of original factory fit flange bolts, nuts,...
  • Suzuki type; Strong heat treated 8.8 & 10.9 grade bolts
  • Generous selection of Matching fasteners for Suzuki DRZ400...
  • Used for maintenance, repair, and or restoration of all...
  • Complete and organized in a tough 6 compartment high impact...
$29.99
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

Since the Drz400S is designed for the off-road, you will find Suzuki packing in some accessories like a cargo rack, hand guards, low 35-36 inch gel seat. You won’t find any handguards in the SM bike. Suzuki has included a chromium molybdenum alloy for the tubing to keep the bike lightweight to handle.

Suzuki placed a double cradle with a skid plate to protect the engine. You can use the SM and S for dual sports, but the S has been optimized for more off-road rides. To help you easily navigate the rocky terrain, the S is fitted with a 49 mm fork suspension that gives you a ground clearance of 11.3 inches. An adjustable spring preload for your rebound and compression stroke is coupled with these. At the rear, you have a clearance of up to 11.6 inches.

Braking

The braking for the drz400s is fitted for off-road terrain with 250mm front disc brakes and 220 mm for the rear. At the front, you have a twin-pot caliber to lock in your brakes with a single pot to handle the rear. For the rims, you get 80/100-21 for the front and 120/90-18 for the rear. The SM operates on 17-inch front and rear rims, with the tires being 120/70 front and 140/70 hoops for the rear. You have 300mm front and 240mm rear disc brakes for better traction on-road.

Drivetrain

Suzuki 398cc liquid-cooled engines in both bikes come with 38mm and 29mm exhaust valves. This works wonders when taking in air and removing exhaust gas from the engine. For both bikes, you get a compression ratio of 11.3.1. With an electric starter and single carburetor fuel system, the S offers enough power to handle a variety of terrain. To help carry the heat from the engine, Suzuki has installed a pressurized oil jet that sprays the oil to the piston crowns hence helping in heat dissipation.

QUASCO Rear Motorcycle LED Turn Signals Universal Mini Size Brake...
QUASCO Rear Motorcycle LED Turn Signals Universal Mini Size Brake...
  • Universal Compatibility: 8mm mounting bolt, used for most DC...
  • Super Bright and Integrated Design: Equipped with 4pcs high...
  • Waterproof: Made of high quality glass lens and painted...
  • Easy Installation: Two installation methods, if your...
  • Package Including: 1 Pair led motorcycle turn signals tail...
$22.99
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

DRZ400S vs. DRZ400SM – Overview

Drz400S – Overview

If you are looking for a bike that is more off-road oriented, then the Suzuki Drz400S is your choice. The bike is ideal for escapades deep into the woods or desert crossroads. For starters, you get a high seat that gives you a good grasp of the terrain.

To enable you to handle a variety of terrains without having to hit the gas stations, the Drz400s comes with a 2.5-gallon tank. The gas tank is narrow enough to navigate through tough terrain without worrying about any destruction being caused to it.

PMRACKS DRZ400 DRZ400S DRZ400SM Rear Luggage Rack (2000-Present)...
PMRACKS DRZ400 DRZ400S DRZ400SM Rear Luggage Rack (2000-Present)...
  • FITS: Rear rack for DRZ400S & DRZ400SM rear rack for bikes...
  • RUGGED: steel construction. Professionally MIG welded single...
  • STAINLESS STEEL: installation hardware included.
  • VIDEO SUPPORT: install video online and paper instructions...
  • ORIGINAL: cnc waterjet design. Sleek lines. Often imitated....
$108.99
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

Regarding the engine, Suzuki chose a carburetor-based fuel system instead of the direct fuel injection system common in other dirt bikes. The six-liter air box has quick-release fasteners that give you a flawless air supply. To boost your visibility deep in the woods, the Drz400S comes with adjustable low-profile mirrors.

You can opt for a low gel seat if you find the 35 to 36-inch seat too high. You also get off-road accessories like a toolbox, cargo rack, and hand guards. It is equipped with adjustable spring preload 49 mm forks that offer 11.3 inches of clearance to push the S into the off-road section.

At the rear, you have more travel at 11.6 inches with an aluminum swingarm progressive-link mono-shock. All these allow for preload and compression damping adjustments.

When it comes to braking, you need nothing but the best. The Drz400S has 250mm front disc brakes with 220mm on the rear. To bind the front, you get twin-pot calipers and a single pot for the rear.

The tires are large and strong enough to handle a variety of terrain. You get 80/100-21 M/C 51P for the front and 120/90-18 M/C 65P for the rear.

The Drz400s belongs to a special bike class, especially street-legal motorcycles. This allows the bikes to handle both on-road and off-road. Since they are street-legal bikes, you will have the mirrors, lights, speedometer, and license plates registered.

Suzuki DR-Z 400 Skid Plate Constructed with 3/16' 5052 H-32...
Suzuki DR-Z 400 Skid Plate Constructed with 3/16" 5052 H-32...
  • 1 piece skid plate will protect your ride
  • The strong and durable 3/16” 5052 H-32 Aluminum will allow...
  • Lightweight material protects your ride without affecting...
  • The included mounting hardware and instructions make it easy...
  • Designed and manufactured by Ricochet - Experienced riders...
$110.19
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

This kind of bike is as sold as the evolution of bikes. It allows them to be used for both pavement riding and off-road. Yamaha was one of the first bike manufacturers to introduce this kind of bike in the 1960s when it introduced the DT-1 based on a two-stroke engine.

The bike was 250cc. Honda also followed suit with their Honda CL350 scrambler, a rendition of their popular Honda CB350. The bike had larger front wheels, exhaust pipes, and lower gearing.

As time passed, more bike manufacturers ventured with their versions of dirt bikes based on the four-stroke engine. The bikes were less focused on the dirt part and combined power, durability, comfort, and performance.

Suzuki’s foray into the dirt bike section was introducing the DR350 in 1990. The bike now comes with license plates enabling one to ride it off-road and on the streets.

Pros

  • Great suspension for handling off-road terrain
  • High seat for better visibility
  • Slim-designed gas tank
  • Offers great power over varying terrain

Cons

  • The 2.5-gallon gas tank may need constant refueling

Drz400SM – Overview

A liquid-cooled 398cc four-stroke engine powers the Drz400SM. Weighing in at 146kg, the SM is versatile enough to tackle a variety of off-road terrains. The seat is high but also comfortable enough.

An inverted telescopic coil spring suspension supports your ride for the front, and a link-type coil spring is an oil damped for the rear.

AnXin Foot Pegs Footpegs Footrest Foot Pedals Rests CNC MX For...
AnXin Foot Pegs Footpegs Footrest Foot Pedals Rests CNC MX For...
  • ★FITMENT - This dirt bike foot pegs fit for DRZ400...
  • ★ALUMINUM ALLOY MATERIAL - It is made of T7 7075...
  • ★WIDER AND BIGGER - It is wider and larger than the...
  • ★ 17 TEETH - There are 17 teeth on the pedals, which...
  • ★ANODIZED SURFACE - The bright colors and anodized...
$31.99
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

The thin, tall seat is comfortable for various terrain, though it can feel hard the longer you ride. The design is basic and simple. You have plastic controls, tall mirrors, and adjustable Renthal bars.

The gearing is short, and the fuel system works great with better control through linear power generation and closed throttle. You can go fast on the highways, but if you want something to tackle the hard off-road terrain, the S would be your ideal bike.

The SM comes with 47mm front forks that offer compression adjustment and rebound to support your weight. For the brakes, you get single large 310mm front rotors supported by Nissin twin-piston calipers.

The brakes offer you enough stopping distance despite your driving speed. You get 240mm rotors for the rear that works well to manage city traffic and some off-road action. They are also well able to absorb larger bumps and potholes.

Regarding the bike’s frame, Suzuki extended itself with chromium-molybdenum thin-walled tubing. This enables the bike to handle vigorous cross-country events with ease. The bike is cleverly designed to reduce weight using the single downtube and backbone as the engine oil bag.

The bike is fitted with USD Showa front forks to help the SM reduce unsprung weight while boosting torsional resistance. This also features low friction aluminate coated tubes, rebound damping, and adjustable compression.

Arashi Front Rear Brake Disc Rotors for Suzuki DRZ400 DRZ400E DRZ400S DRZ400SM
Arashi Front Rear Brake Disc Rotors for Suzuki DRZ400 DRZ400E DRZ400S DRZ400SM
  • Arashi Front & Rear Brake Rotors (2 pcs).
  • For Suzuki DRZ400 DRZ400E DRZ400S DRZ400SM 2005-2021
  • Constructed from 420 stainless steel.
  • Reducing brake fade, minimizing warping, and ensuring...
  • Good heat dissipation under heavy braking sessions.
$145.98
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

To further help curb additional weight, you have a tapered aluminum swingarm and mono-shock that both high and low-speed compression damper adjustment.

The SM is quite a capable bike with 17-inch front and rear rims. The bike has 120/70 and 140/70 front and rear street tires. The 398cc DOHC engine comes with 38mm and 29mm exhaust valves that boost air to the combustion chambers.

Regarding pricing, the SM is about $600 more expensive than the S bike. You can have it in a variety of colors that includes blue or red accents. You have a 12-month warranty with unlimited mileage.

Finding a solid competitor for the SM is hard due to the limited bikes in the under 400cc category, but you will find plenty of challengers in the 650cc range.

Dual bikes like the DRZ400SM are often categorized into three main sections. You have the first category of lightweight dual sport bikes that weigh roughly 110 to 140 kg/250 to 300 lbs. Long travel suspension, high fenders, and high ground clearance symbolize the bikes.

The lightweight bikes are so close to the name dirt bikes as you can use them on rough rails and even two-track roads.

Next, we have the middle dual-weight category. Here we have bikes weighing 140 to 160 kg/300 to 350 lbs. The bikes are meant to act as a bridge between pavement riding and dirt. This means their suspension and ground clearance isn’t as high as in the first category. These bikes are ideal for riding on pavements, graded dirt roads, and smooth rails.

Trail Tech 752-119 Black Vapor Digital Speedometer Tachometer...
Trail Tech 752-119 Black Vapor Digital Speedometer Tachometer...
  • Features include a large RPM graph and speed readout,...
  • Vapor displays speed, tach, engine temperature, ambient...
  • Customize and fine tune Vapor for tire size, tach...
  • Vapor can operate on regulated AC or 12V DC electrical...
  • Use the built-in stop watch for race training, or resettable...
$161.63
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

Lastly, we have heavyweight dual sport bikes which weigh more than 160 kg/350 lbs. These categories of bikes are largely suitable for long-distance travel and for people comfortable riding on pavements.

The bike does not perform as well in off-road rides as the lightweight dual sport bikes. You will notice that the bikes offer a more comfortable riding position, the ability to carry luggage, and reasonable range, and they weigh less than the touring bike. If you love adventure and are seeking a touring bike, go for these bikes.

Preference for dual sport bikes is largely due to the ability to customize them as you deem fit. You can change the tires, handlebars, foot pegs, and bash plates. Most riders will also repaint them to make them look more aggressive and colorful.

If you are intending to use the bike for long-distance travel, most bikers will change the racks, petrol tanks, and windscreens.

Pros

  • Duel road bike
  • Power braking system
  • Large exhaust valves for enhanced compression

Cons

  • It does not handle off-roads as well as the S
Motorcycles Phone Mount with Charger Grip Mobile Phone Holder
Motorcycles Phone Mount with Charger Grip Mobile Phone Holder
  • 【Super strong grip】-Creative X type grip design, four...
  • 【USB charging port】-Phone holder with charger. Just...
  • 【360 degree rotation】-Fully adjustable 1 inch ball head...
  • 【Fit for most phones】-Suitable for mobile phones with a...
  • 【Fit for most motorcycles】-This motorcycle bracket...
$26.99
Buy on Amazon Price incl. tax, excl. shipping

Last update on 2023-03-10 / Affiliate links / Images from Amazon Product Advertising API

Conclusion

The Drz400s and the Drz400sm come with the same 398cc four-stroke engine that delivers when it matters on/off-road. You can comfortably hit speeds of over 100 km/h on tarmac roads.

But, if you are looking for a better off-road bike, go with the Drz400s. Its suspension, braking, and seats have been customized to handle a variety of terrain that you throw at it.

Post Views: 58
Post Tags: #Dirt Bikes#Suzuki

Related Posts

  • What Size Dirt Bike Should You Get for Your Height?
  • Suzuki vs. Yamaha Who Is the Most Reliable
  • Kawasaki vs. Suzuki – Who produces the faster superbike
  • Are Dirt Bikes Street Legal In Florida?
  • How To Size A Dirt Bike (Complete Guide)

Motorcross Dirt Helmet

ILM Adult ATV Motocross Dirt Bike Motorcycle BMX MX Downhill Off-Road MTB Mountain Bike Helmet DOT Approved(Matte Black, Adult-Medium)
Check Me Out On Amazon

Prices pulled from the Amazon Product Advertising API on:

Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.


1Storm Dual Sport Helmet

1Storm Dual Sport Motorcycle Motocross Off Road Full Face Helmet Dual Visor Matt Black, Size L
Check Me Out On Amazon

Prices pulled from the Amazon Product Advertising API on:

Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.


Best Rated Dirt Bikes


Kids Mini Dirt Bike

SYX MOTO Kids Mini Dirt Bike Gas Power 2-Stroke 50cc Motorcycle Holeshot Off Road Motorcycle Holeshot Pit Bike, Fully Automatic Transmission, Orange, 1 Bike Only
Check Me Out On Amazon

Prices pulled from the Amazon Product Advertising API on:

Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.


125cc Adults Dirt Bike

X-PRO 125cc Dirt Bike Pit Bike Adults Dirt Pit Bike 125 Dirt Bike Dirt Pitbike,Big 17″/14″ Tires! Cradle Type Steel Tube Frame! (Blue)
Check Me Out On Amazon

Prices pulled from the Amazon Product Advertising API on:

Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.


4-Stroke Kids Dirt Off Road Mini Dirt Bike

FRP DB003 40CC 4-Stroke Kids Dirt Off Road Mini Dirt Bike, Kid Gas Powered Dirt Bike Off Road Dirt Bikes, Gas Powered Trail Mini Bike – Ultra Edition
Check Me Out On Amazon

Prices pulled from the Amazon Product Advertising API on:

Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.


Affiliate Disclosure

We are an affiliate. We hope you like our recommendations! Just so you know, we may collect a share of sales or other compensation from the links on this website. Thank you for using our links, it helps to grow our website.

  • Privacy Policy
  • Affiliate Disclosure
  • Contact Us
  • About Us
  • Cookie Policy
  • Privacy Statement

© 2023 MotorBeast Motorbeast.Org

Manage your privacy

To provide the best experiences, we and our partners use technologies like cookies to store and/or access device information. Consenting to these technologies will allow us and our partners to process personal data such as browsing behavior or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.

Click below to consent to the above or make granular choices. Your choices will be applied to this site only. You can change your settings at any time, including withdrawing your consent, by using the toggles on the Cookie Policy, or by clicking on the manage consent button at the bottom of the screen.

Functional Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes. The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.
Marketing
The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.
Statistics

Marketing

Features
Always active

Always active
Manage options Manage services Manage vendors Read more about these purposes
Manage options
{title} {title} {title}
Manage your privacy
To provide the best experiences, we use technologies like cookies to store and/or access device information. Consenting to these technologies will allow us to process data such as browsing behavior or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.
Functional Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes. The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.
Marketing
The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.
Manage options Manage services Manage vendors Read more about these purposes
Manage options
{title} {title} {title}
Scroll to top
  • Autos
  • Audio
  • Bikes
  • Batteries
  • Detailing
  • Oils
  • Parts
  • Questions
  • Roof Boxes
  • Scanners
Search
